Cat6 vs Cat6a Cable: What’s the Real Difference and Which One Should You Choose?

Introduction

When planning a new Ethernet installation, it’s easy to get stuck between Cat6 and Cat6a. At first glance, they might seem almost identical — both support Gigabit and even 10-Gigabit speeds. But behind those numbers are key differences in shielding, bandwidth, distance limits, and even future compatibility that could seriously affect your network’s performance.

In this guide, I’ll walk you through the real-world differences between Cat6 and Cat6a, from performance specs to installation scenarios. Whether you’re upgrading a home setup or deploying structured cabling in an enterprise environment, this breakdown will help you make the right call — without overpaying or underbuilding.

Quick Comparison: Cat6 vs Cat6a in a Nutshell

If you’re planning a new network installation or upgrading your current setup, you’ve probably wondered: Should I choose Cat6 or Cat6a Ethernet cable? The answer depends on how far you’re running the cable, what kind of performance you need, and how future-proof you want your infrastructure to be.

Here’s a quick breakdown to help you decide:

Feature	Cat6	Cat6a
Max Speed	10 Gbps (up to 55m)	10 Gbps (up to 100m)
Bandwidth	250 MHz	500 MHz
Shielding	UTP/STP (less EMI protection)	Usually shielded (better EMI)
Max Cable Length	100 meters (1 Gbps)	100 meters (10 Gbps)
Cable Thickness	Thinner, easier to install	Thicker, harder to bend
Average Cost	Lower	20–40% higher
Common Use	Homes, offices	Data centers, high-speed setups

In short: If you’re building for the future, Cat6a is the better choice, especially for long-distance 10Gbps runs or EMI-prone environments. For most home networks or short-distance connections, Cat6 offers plenty of value.

What Is the Main Difference Between Cat6 and Cat6a?

The biggest difference between Cat6 and Cat6a lies in their design standards and shielding, which impact their performance and physical characteristics.

• Cat6 cables are rated to handle up to 1 Gbps at 100 meters, and 10 Gbps at shorter distances (up to ~55m). They operate at 250 MHz bandwidth and are typically unshielded (UTP), although some shielded (STP) versions exist.
• Cat6a (augmented Cat6) steps things up by supporting 10 Gbps across the full 100 meters. It’s certified to 500 MHz bandwidth, making it better suited for high-speed and interference-prone environments.
• One key physical difference is thickness. Cat6a cables are bulkier due to extra shielding and thicker conductors. That makes them slightly harder to install, especially in tight conduit runs or patch panels.

🧠 Industry Insight: As more homes and offices adopt Wi-Fi 6/6E and 10Gbps-capable routers, Cat6a is becoming the preferred standard in new installations — even for residential users who want to future-proof their networks.

🔗 [Cat6 Ethernet Cable – Explore Product Page on Otscable]

Speed, Bandwidth & Distance – Which Performs Better?

When it comes to raw performance, Cat6a clearly outpaces Cat6 — especially for 10 Gigabit Ethernet and long cable runs.

Here’s how they compare:

• Cat6 can handle 10 Gbps only up to ~55 meters. Beyond that, performance degrades, and it’s recommended only for 1 Gbps at full 100m length.
• Cat6a, on the other hand, maintains full 10 Gbps throughput at 100 meters without issues.
• The bandwidth is another key factor:
  • Cat6: 250 MHz
  • Cat6a: 500 MHz

This means Cat6a can carry more data with less signal degradation, especially over longer distances or in environments with high interference (like server rooms or industrial sites).

📈 Data Source: According to the TIA/EIA-568-C.2 standard (2024 update), Cat6a is the minimum recommended cable for any structured cabling aiming for multi-gigabit speeds over 50m+.

🔗 External Link: TIA Standards for Cabling – TIAonline.org

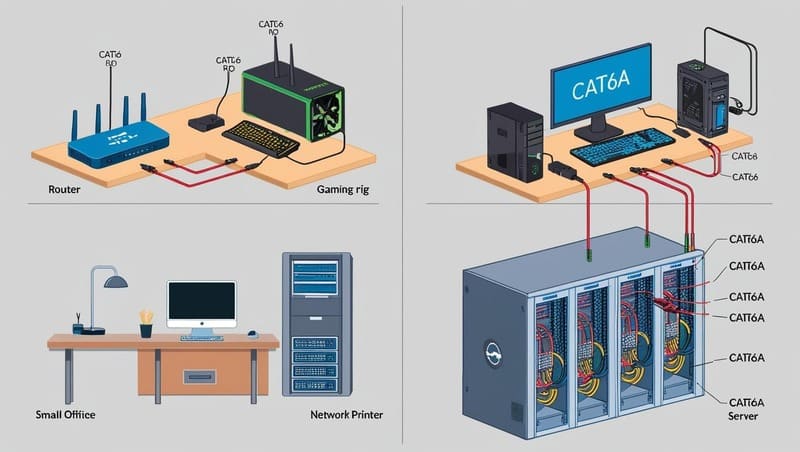

Use Case Scenarios – Home, Office, or Enterprise?

Choosing between Cat6 and Cat6a isn’t just about numbers — it’s about how and where you’ll use the cable.

Let’s break it down:

🏠 Home Network Use

• Cat6 is more than enough for streaming, smart home devices, and everyday usage.
• Most home users won’t run cables over 55m, so Cat6’s 10 Gbps (short run) or 1 Gbps (long run) is sufficient.
• Easier to install, especially for wall runs or attic space.

🎮 Gaming & High-Speed Internet

• If you’re building a low-latency setup or want to eliminate lag, Cat6a is ideal, especially in multi-user households.
• Shielding minimizes packet loss and EMI — useful if you run cables near power lines.

🏢 Office or Commercial Networks

• For VoIP, large file transfers, and cloud services, Cat6a ensures smooth performance over longer distances.
• Works better with PoE+ devices like IP cameras or Wi-Fi 6 access points.

🏭 Data Centers & Industrial

• Cat6a is a must — especially in environments with heavy EMI, where shielding and consistency are critical.

🚫 Common Misconception: “Cat6 always supports 10 Gbps” — this is only true under 55m. For longer runs, Cat6a is the safe bet.

Cost Comparison – What’s the Price Difference?

Price often becomes the deciding factor, especially for large-scale installs. Here’s what to expect:

Feature	Cat6	Cat6a
Average Price (Bulk)	$0.10–$0.20 per foot	$0.15–$0.35 per foot
Connector Cost	Standard RJ45	Standard RJ45 (same)
Installation Difficulty	Easy	Medium-Hard (thicker)
Bend Radius	Tighter turns possible	Requires more space
Total Cost of Ownership	Lower	Higher, but more future-proof

💡 Pro Tip: Even though Cat6a is more expensive upfront, it can reduce upgrade costs later, especially as gigabit internet and cloud workloads become standard.

🔗 Internal Link: [Explore Patch Panels Compatible with Cat6a – Otscable.com]

Patch Panel & Connector Compatibility

One of the most frequent concerns buyers have is:
Can I use Cat6 cables in a Cat6a patch panel or vice versa?

Here’s what you need to know:

• Connectors: Both Cat6 and Cat6a use the standard RJ45 connector, so they’re physically compatible.
• Keystone Jacks: Be cautious when mixing categories — for optimal performance, always match cable and jack category (e.g., Cat6a cable with Cat6a keystone).
• Patch Panels:
  • A Cat6a patch panel can accept Cat6 cables, but doing so may reduce overall performance.
  • If you need shielding, make sure the panel supports STP and includes grounding.

🧠 Expert Tip: If you’re wiring for future scalability, install Cat6a-compatible hardware even if you start with Cat6 cables — especially for corporate or structured cabling setups.

EMI, Shielding & PoE Capabilities

🛡️ EMI and Shielding

• Cat6a cables are often shielded (STP, FTP), providing better protection against electromagnetic interference (EMI) — ideal near power cables or heavy equipment.
• Cat6 cables are usually unshielded (UTP), but shielded variants exist for critical use.

Shielding matters when:

• You’re installing near fluorescent lights, HVAC, or industrial machinery.
• You’re running long-distance cables where interference could degrade signal.

🔌 PoE (Power over Ethernet) Compatibility

Both Cat6 and Cat6a support PoE, PoE+, and PoE++ (up to 90W), but Cat6a has less power loss and lower heat buildup, making it better for:

• IP security cameras
• Access points (Wi-Fi 6/6E)
• VoIP phones

💡 Tool Recommendation:
Try a PoE voltage calculator or Ethernet cable tester to verify safe and efficient power delivery for your specific setup.
Example: PoE Calculator by FS.com

Frequently Asked Questions

Is Cat6a worth it over Cat6?
Yes — especially if you need full 10 Gbps over 100 meters or you’re wiring for high-interference areas. It also performs better with PoE+ loads.

Can Cat6 handle 10Gbps?
Only for short runs (up to ~55m). Beyond that, performance drops and you’ll likely see packet loss or reduced speeds.

Are Cat6 and Cat6a connectors the same?
Physically, yes — both use RJ45. However, shielded Cat6a connectors are recommended for full performance and noise protection.

What are the drawbacks of Cat6a?
Mainly thicker cable diameter, which makes it harder to bend and route. It’s also more expensive than Cat6.

Is Cat6a good for gaming?
Yes — Cat6a’s shielding and bandwidth help reduce latency and interference, especially in dense setups or longer cable runs.

Final Thoughts – Which One Should You Choose?

Both Cat6 and Cat6a are solid choices — but they serve different needs:

• Choose Cat6 if:
  • You’re building a home network, and cables are under 55 meters
  • You want a cost-effective solution
  • Your environment has minimal EMI
• Choose Cat6a if:
  • You need 10 Gbps at full 100m distance
  • You’re installing in commercial or interference-heavy spaces
  • You want to future-proof for Wi-Fi 6/6E, PoE++, and beyond

📦 As a supplier, I always recommend Cat6a for structured cabling projects, especially when the budget allows. It’s simply the better long-term investment for modern networks.
