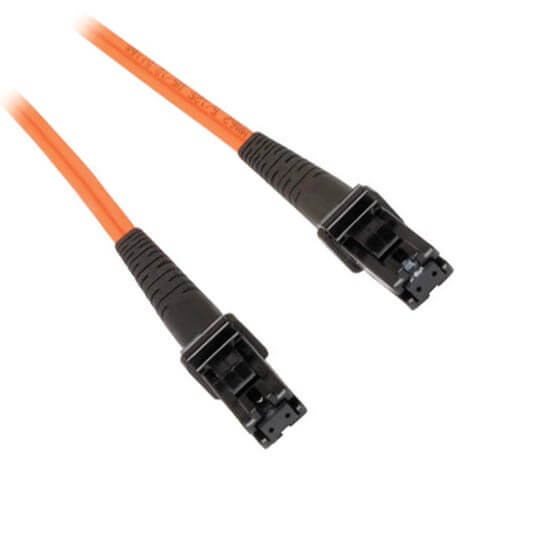

MTRJ-MTRJ fiber optic patch cord

MTRJ-MTRJ patch cord

Details

MTRJ-MTRJ fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
MTRJ stands for Mechanical Transfer Registered Jack. It’s half the size of the SC connector.

Features

  • Low insertion loss, high return loss
  • High dense connection, easy for operation
  • High credibility and stability
  • Good in repeatability and exchangeability

Application

  • Testing equipment
  • FTTX+LAN
  • Optical fiber CATV
  • Optical communication system
  • Telecommunication

Get A free Quote Now

    Technical Parameters

    Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
    SM MM SM MM SM MM SM
    PC UPC APC PC PC UPC PC PC UPC PC PC APC
    Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
    Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
    Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
    Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
    Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
    Operating temperature ℃ -40~75 -40~75 -40~75 -40~75
    Storage temperature ℃ -45~85 -45~85 -45~85 -45~85
    Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9

    MTRJ-MTRJ Patch Cord

    MTRJ-MTRJ fiber optic patch cord is a multimode duplex fiber optic patch cable manufactured from 62.5/125 fiber. It is commonly used in LAN applications, telecommunication networks, device terminations and premises distributions where locations are less than 10 feet away.

    MTRJ connectors are designed for applications where duplex multimode connections are needed. It is an SFF connector that also resembles an RJ45 plug and has two fibers for duplex connections.

    Enhanced Connector Durability

    Instead of alignment sleeves within the adapter, MTRJ connectors are designed to use alignment pins. You can easily plug and unplug devices with its convenient and accurately injection-molded locking tabs designed with enhanced durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance. MTRJ-MTRJ patch cord is a cheaply priced cable that can provide high speed bandwidth and enhanced transmission rates.

    Safe and Tested Fiber Assembly with Low Insertion Loss

    Our patch cords are 100% optically inspected and tested to bring low insertion loss not exceeding 0.02 dB.

    Singlemode or Multimode MTRJ-MTRJ, Riser or Plenum Rated

    OTSCABLE supplies MTRJ-MTRJ fiber optic cable assemblies duplex multimode (50/125 and 62.5/125) options. You can choose if it’s for riser application or plenum connections or if you want it to be completely customized, you can contact us to know more about our OEM/ODM service for MTRJ-MTRJ patch cords.
