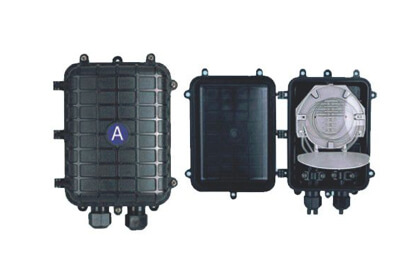

Fiber Splice CSC 1011

Fiber Splice CSC 1011

Get A free Quote Now

    • model Size(mm) Core capacity CablePort(max) Max diameter Of cable(mm) Splice Tray model Core capacity Tray Weight (kg)
      CSC-1011 300 ×20 ×93 72 2 φ 19 F 6~12 1.45
    • Sequence Number Inspection Item Requirement Inspection Conclusion
      Results
      1 Appearance and configuration Appearance Shape integnity, Meets the requirements Qualification
      No defect,color uniform
      Optical Fibers Storage Set Residual fiber length no less than 1.6m ＞1.6m
      Residual fiber curvature Radius no less than 30mm ＞35mm
      Electric Connecting Set Electnic connecting or shut off section in the box,ground lead-out section on the externl shell. Meets the requirements
      2 Seal performance Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape No air bubble escape,air pressure change is 4KPs Qualification

      Sequence Number Inspection Item Requirement Inspection Conclusion
      Results
      3 Insulated Resistance After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×104MΩ Between two metal sections 1×106MΩ Qualification
      Betwwen metal section and ground 1×106MΩ Qualification
      4 Voltage Resisting Strength After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc Between two metal sections No breakage No electric arc Qualification
      Betwwen metal section and ground No breakage No electric arc Qualification
      5 Seal performance Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged No air bubble escape,air press keeps unchanged Qualification
      6 Re-Seal performance Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged No air bubble escape,air press keeps unchanged Qualification

      Sequence Number Inspection Item Requirement Inspection Conclusion
      Results
      7 Axis Tensile For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged Air press keeps unchanged Qualification
      8 Crush For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged Air press keeps unchanged Qualification
      9 Impact 16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged Air press keeps unchanged Qualification
      10 Bending 150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged Air press keeps unchanged Qualification
      11 Torsion 50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged Air press keeps unchanged Qualification
